WEIMI · Dog wash equipment

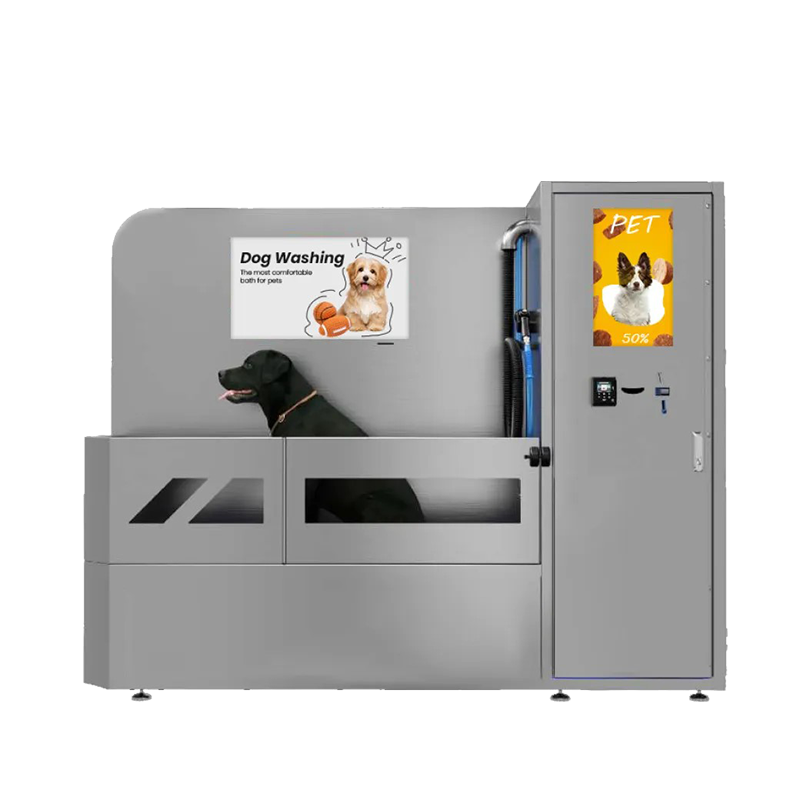

Self-Service Dog Wash Machines
A dedicated washing and drying station for pet service businesses. Plan your WM22-DW around the customer wash journey, site utilities and daily care.
21.5-inch control + 32-inch advertising display40 L water heater
Request a quotation ↗Configuration and quotation prepared for your project.
Self-service dog wash
WM22-DW hardware and site brief
| Model / version | Footprint & display | Storage & layout | Delivery / options |
|---|---|---|---|
| WM22-DW — Self-service dog wash station Enquire about this model ↗ | W209 × D63 × H180 cm; 21.5-inch control + 32-inch advertising screens | Water heater: 40 L; 4 × 10 L liquid canisters; 4 pumps | Liquid-level sensors; shower head; blowing dryer |
Reference configurations from the WEIMI specification sheet. Dimensions are W × D × H unless stated otherwise. Layout and nominal unit capacity depend on the approved packs. Versions sharing a model code remain separate. Confirm the final drawing, temperature configuration, local electrical supply and payment scope in your quotation.
Request this configuration ↗Prepare the wash site
Water, drainage and safe commissioning come first
| Reference item | What the supplied manual states |
|---|---|
| Water inlet | 20 mm pipe diameter |
| Waste-water outlet | 40.5 mm pipe diameter; route drainage to the approved outlet |
| Water heater | 40 L; fill the heater before powering on to avoid dry heating |
| Liquid system | Four labelled canisters and pumps; keep each suction pipe with its matching liquid |
| Network | Wi-Fi, 4G SIM or LAN connection |
| Customer controls | Touchscreen wash functions, shower head, dryer and pause / continue control |
Have the installer verify the supplied connections, local electrical protection, drainage and equipment clearances. Use the current machine manual for commissioning. The specified liquid system uses four 10 L canisters.
Set up the service
From the service menu to the first paid wash
Assign services and prices
Add services to the machine, set machine-specific prices and arrange the screen order.
Run the acceptance checks
Test each wash function and payment response, then compare the resulting order in the mobile or desktop system.
Set the operating hours
The manual describes daily, date-based and day-based schedules, with an out-of-service display outside the selected hours.
Run the wash point
Consumables and service checks in one operating plan
01
Consumable records
The wash Demo includes cleaning-agent names, identifiers and descriptions.
02
Canister mapping
The wash Demo includes device, slot, cleaning agent and warning-line configuration.
03
Customer communication
The manual describes screen advertising, logo and contact information.
04
Multi-site teams
The manual describes operation routes and sub-accounts with selected permissions.
Assign cleaning between customers, chemical checks, refill timing and a local assistance contact. Review which level signals and warning functions are commissioned on your machine.
Request this configuration ↗Before requesting a quotation
Questions for your wash project
What should I send for a WM22-DW quotation?
Share your installation country, venue, intended quantity, site photographs and available water, drainage and electrical supply. We will review the configuration and installation scope.
How are the liquids configured?
The reference configuration uses four 10 L canisters with separate labelled pumps and liquid-level sensing. Confirm the compatible shampoo, conditioner, flea-and-tick and disinfectant formulations for the supplied machine.
Can I set service prices and opening hours?
The supplied operator manual describes machine-specific service pricing, screen order and operating schedules. Request a demonstration for the commissioned software.
